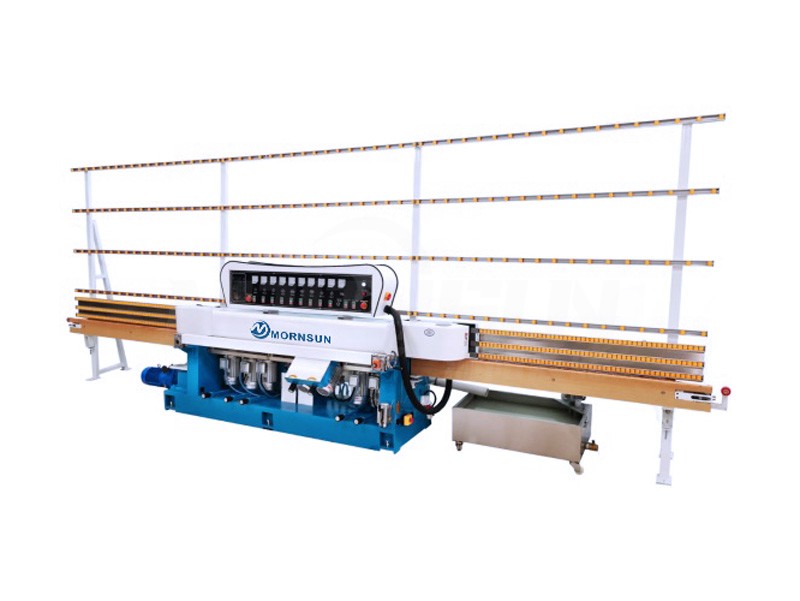

Vertical Glass Straight Line Edging Machine

Vertical Glass Straight Line Edging Machine

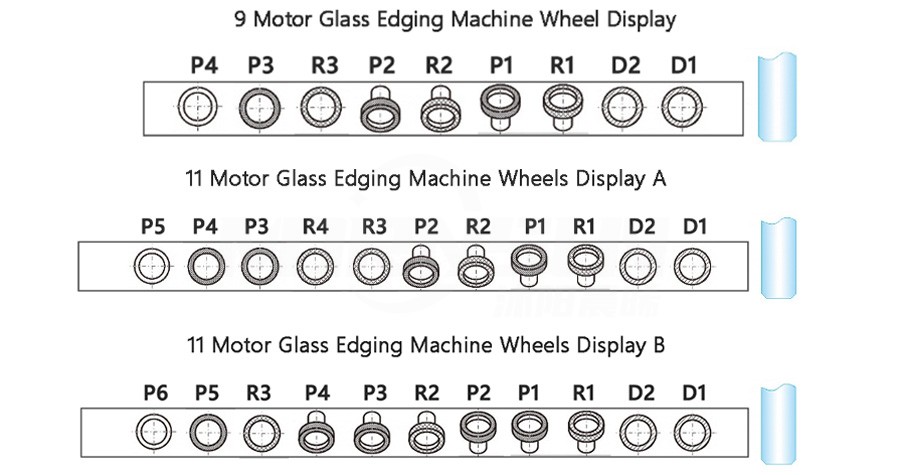

Vertical Glass Straight Line Edging Machine is a professional equipment used for glass processing. It is mainly used for grinding and polishing the straight edges of glass plates to obtain flat and smooth edges. Commonly divided into two specifications: 9 grinding wheels and 11 grinding wheels, which can meet most glass polishing needs.

  • Max. Glass Size :

    3000mm
  • Min. Glass Size :

    80mm
  • Glass Thickness :

    3 ~ 25mm
  • Usage :

    polishing glass edges
  • Product Details

Machine Description

Vertical Glass Straight Line Edging Machine is a kind of equipment specially used to process the straight edge of glass. It adopts a vertical design and is efficient, precise and stable. By adjusting the grinding pressure and speed to meet the processing needs of glass of different materials and thicknesses. It is widely used in fields such as architecture, furniture, decoration and photography. It can handle various types of glass, such as ordinary glass, tempered glass, laminated glass, etc.

Machine Parameter

MODEL MSE-09 MSE-11
Min. Glass Size 80*80mm 80*80mm
Glass Thickness 3 ~ 25 mm 3 ~ 25 mm
Processing Speed 0 ~ 6m/min 0 ~ 6m/min
Motor Quantity 9pcs 11pcs
Power 19Kw 24Kw
Weight 2700kgs 3200kgs
Machine Size 6800*1000*2500mm 7500*1000*2500mm



Machine Feature

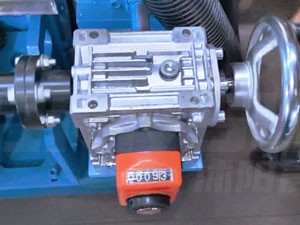

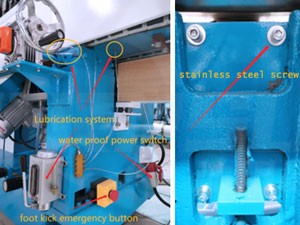

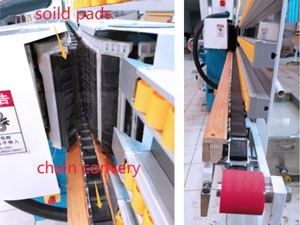

Glass Thickness Adjustment: glass thickness showing on meter Chain Transfer System: Chain conveyor & soil type front pads, good for big size and heavy glass Lubrication System & Foot Kick Emergency Button & Water Pump Power Supply

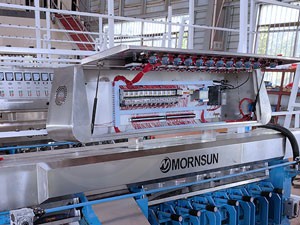

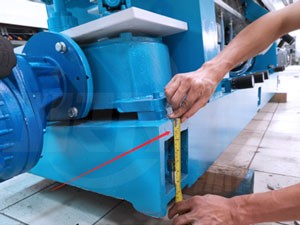

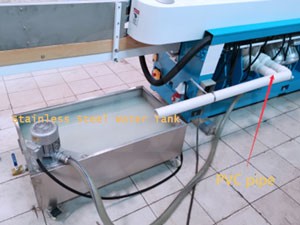

Annealing Treatment Base: 30mm thick cast iron Stainless Steel Water Tank and PVC Pipe Schneider / DELIXI  Electric Components

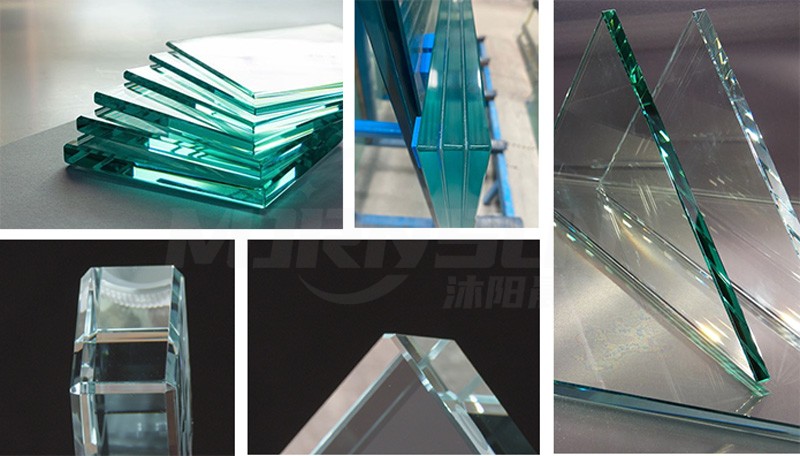

APPLICATION
