Verticle Glass Washing and Drying Machine

Verticle Glass Washing and Drying Machine

Vertical Glass Washing and Drying Machine: space-saving automated cleaning (pre-wash, deep clean, rinse, dry) with adjustable settings for architectural/insulated glass processing.

  • Max. Glass Size :

    500 ~ 2500
  • Min. Glass Size :

    40*40mm
  • Glass Thickness :

    3 ~ 19mm
  • Usage :

    flat glass washing and drying
  • Product Details

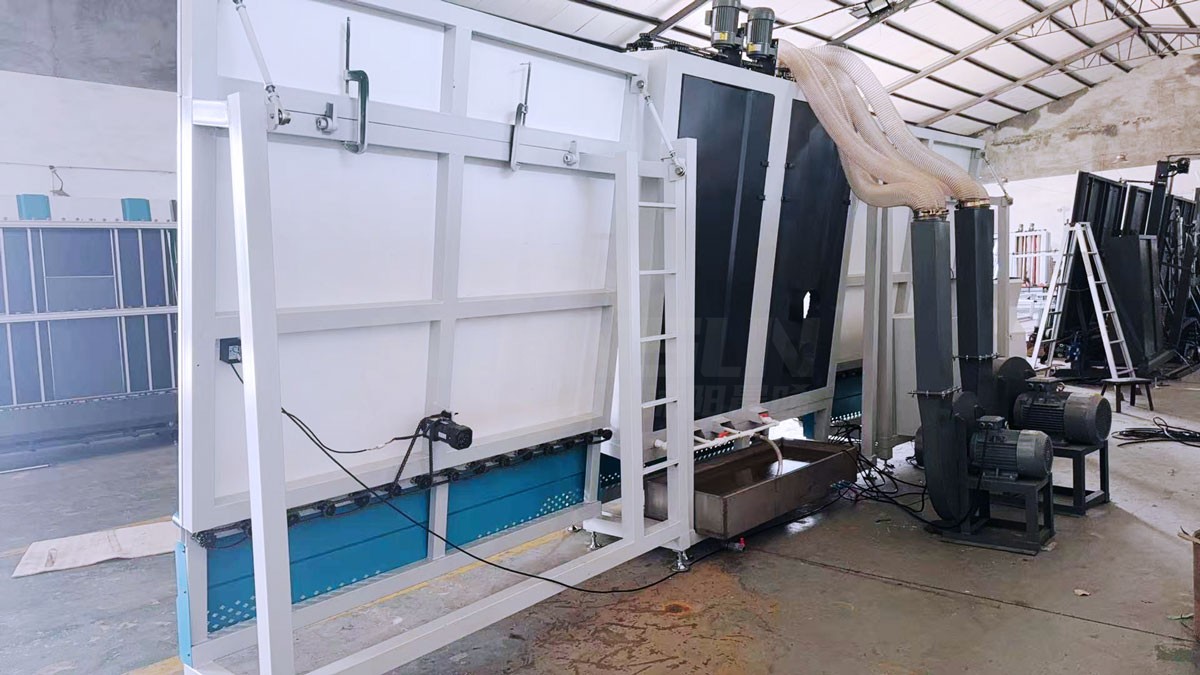

Machine Description

This professional-grade Vertical Glass Washer features space-saving design with intelligent conveying system. It performs precision multi-stage cleaning (pre-wash, chemical clean, rinse, dry) using adjustable spray pressure and special Low-E brushes. Constructed with 304 stainless steel, it includes hot-air drying and water recycling systems. PLC touchscreen enables customized settings for various glass types (float/Low-E/coated), widely used in architectural and insulated glass production to enhance efficiency and quality.



Machine Parameter

Model MS-VQ-1600 MS-VQ-2000 MS-VQ-2200 MS-VQ-2500
Max Glass Height 1600mm 2000mm 2200mm 2500mm
Min Glass Size 300*400mm 300*400mm 300*400mm 300*400mm
Glass Thickness  3 ~ 19mm 3 ~ 19mm 3 ~ 19mm 3 ~ 19mm
Brush 3 paris 3 paris 3 paris 3 paris
Air Knife 2 pcs 2 pcs 2 pcs 2 pcs
Voltage 380V 50Hz or Customized 380V 50Hz or Customized 380V 50Hz or Customized 380V 50Hz or Customized





Machine Feature

  • Space Optimization - Vertical structure saves 70% floor space, maximizing workshop utilization.
  • Soft-Touch brush sets for safe cleaning of Low-E and special glass.
  • 304 stainless steel body ensures long-term stable operation.
  • Independent cleaning and drying zones.
  • Perfectly adapted for insulating glass production lines and vertical drilling/CNC processing lines.
  • Precision spray system easily removes oil, dirt, and particles from the glass surface.
  • Powerful air knife for fast drying without leaving any water marks.
